High Speed
Programmable Pulse Generator, Delay Generator
and
Digital Word Generator (USB interface)
X
Models and Ordering Information
PBESR-PRO-XX-USB-SMA
XX – Clock frequency, in MHz.
Standard value is 500 MHz. Sample Part
Number: PBESR-PRO-500-USB-SMA: (500 MHz
clock frequency, 2.0 ns shortest pulse, 4k
memory depth).
Model
Price
Order
PBESR-PRO-500-USB-SMA (USB board, 500
MHz) NEW!
500 MHz
12 channels
USB connector
2.0 ns pulse resolution
2.0 ns shortest pulse
4k memory words
$5395

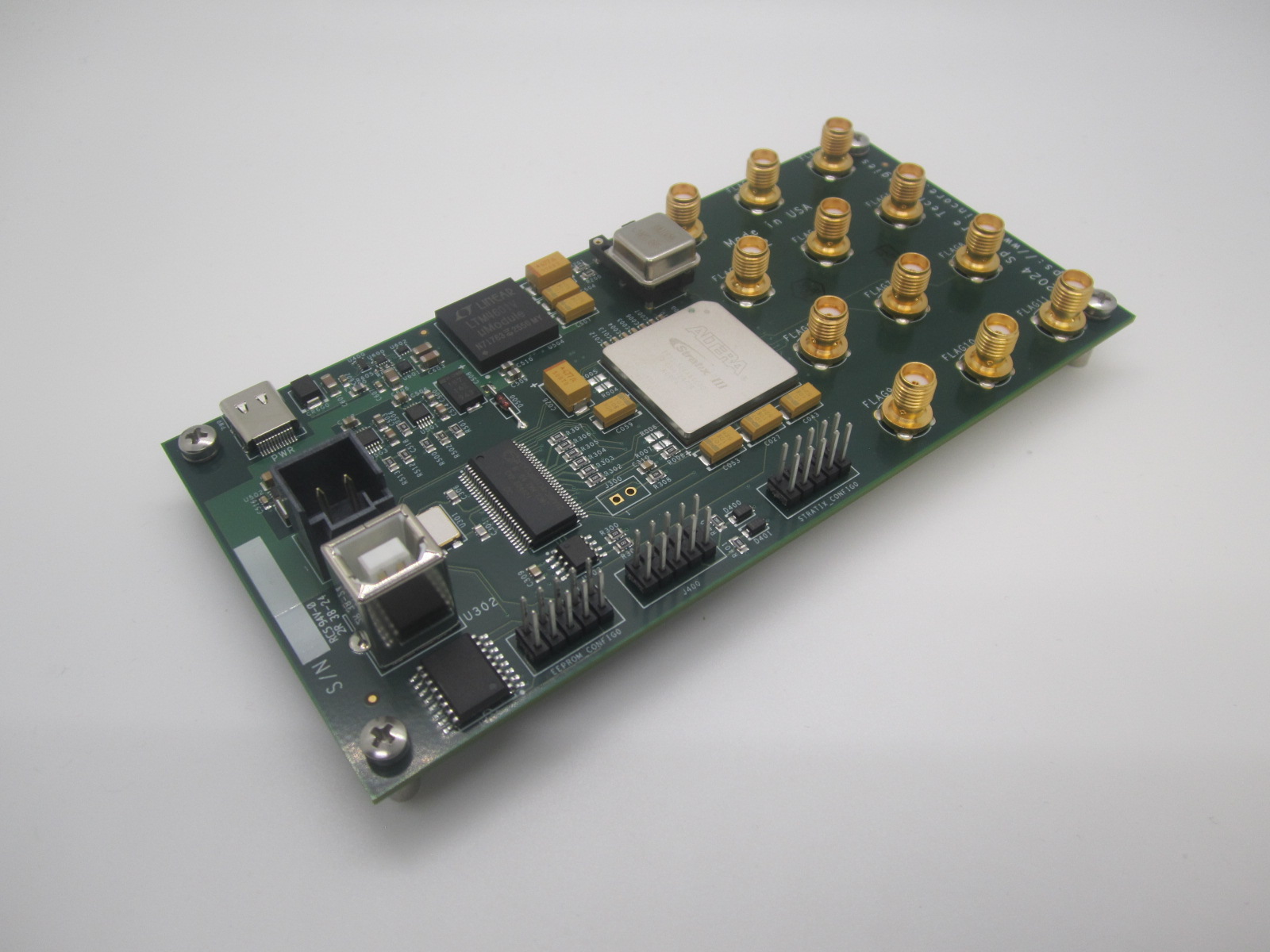

PulseBlasterESR-PRO-USB-SMATM
series is a high-speed, programmable,
multichannel pulse generator in the USB form
factor. Based on the versatile
PulseBlasterTM processor
architecture, the USB board can accommodate
pulse programs with highly flexible control
commands of up to 4k program words, featuring
loops (nested 8 levels deep), large loop counter
(20 bits, up to 1,048,576 repetitions),
deterministic WAIT OpCode with a constant
latency of 8 clock cycles (16.0 ns at 500 MHz),
adjustable to 8.59 seconds in duration, or as
long as 104 days (at 500 MHz) using the long
delay feature, and up to 15 MHz retriggering
frequency.
PulseBlasterESR-PRO-USB-SMATM
includes 12 output signals and a short pulse
feature allowing for down to 2.0 ns pulse at 500
MHz.
Key Specifications
High speed - currently up to 500 MHz clock
frequency
Standard clock stability of 100 ppm, with
optional oven-controlled clock oscillator
(OCXO) of 200 ppb

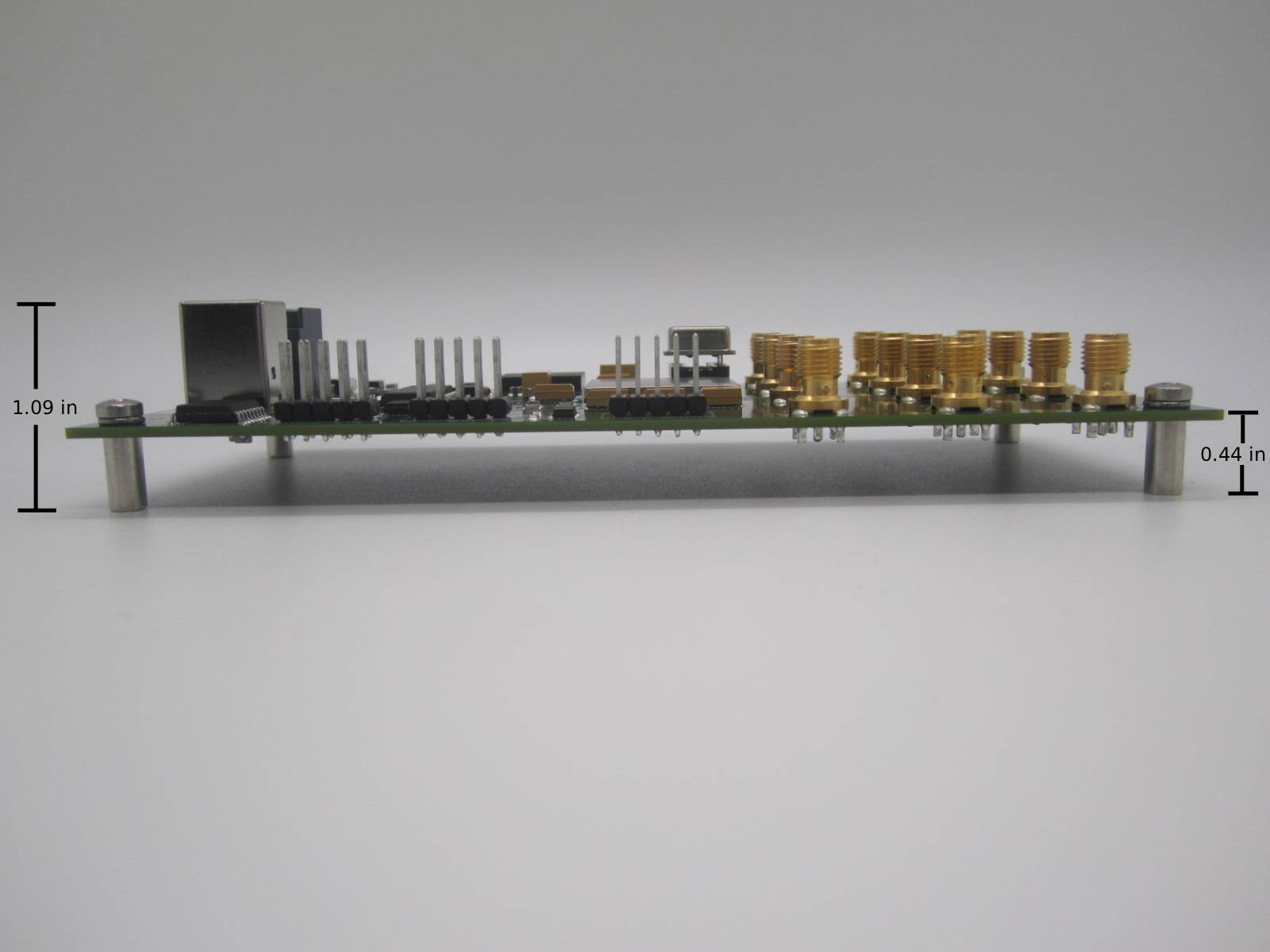

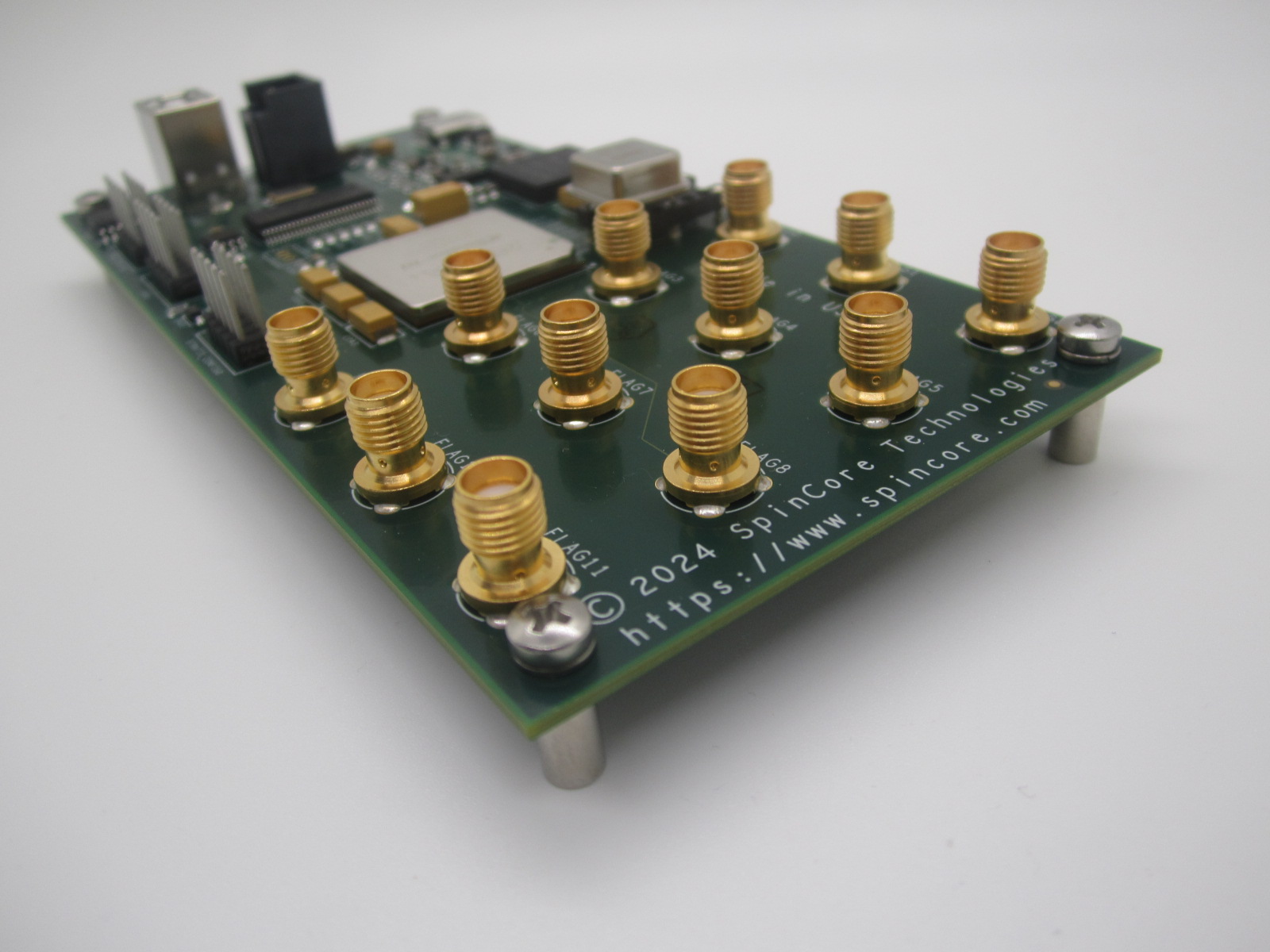

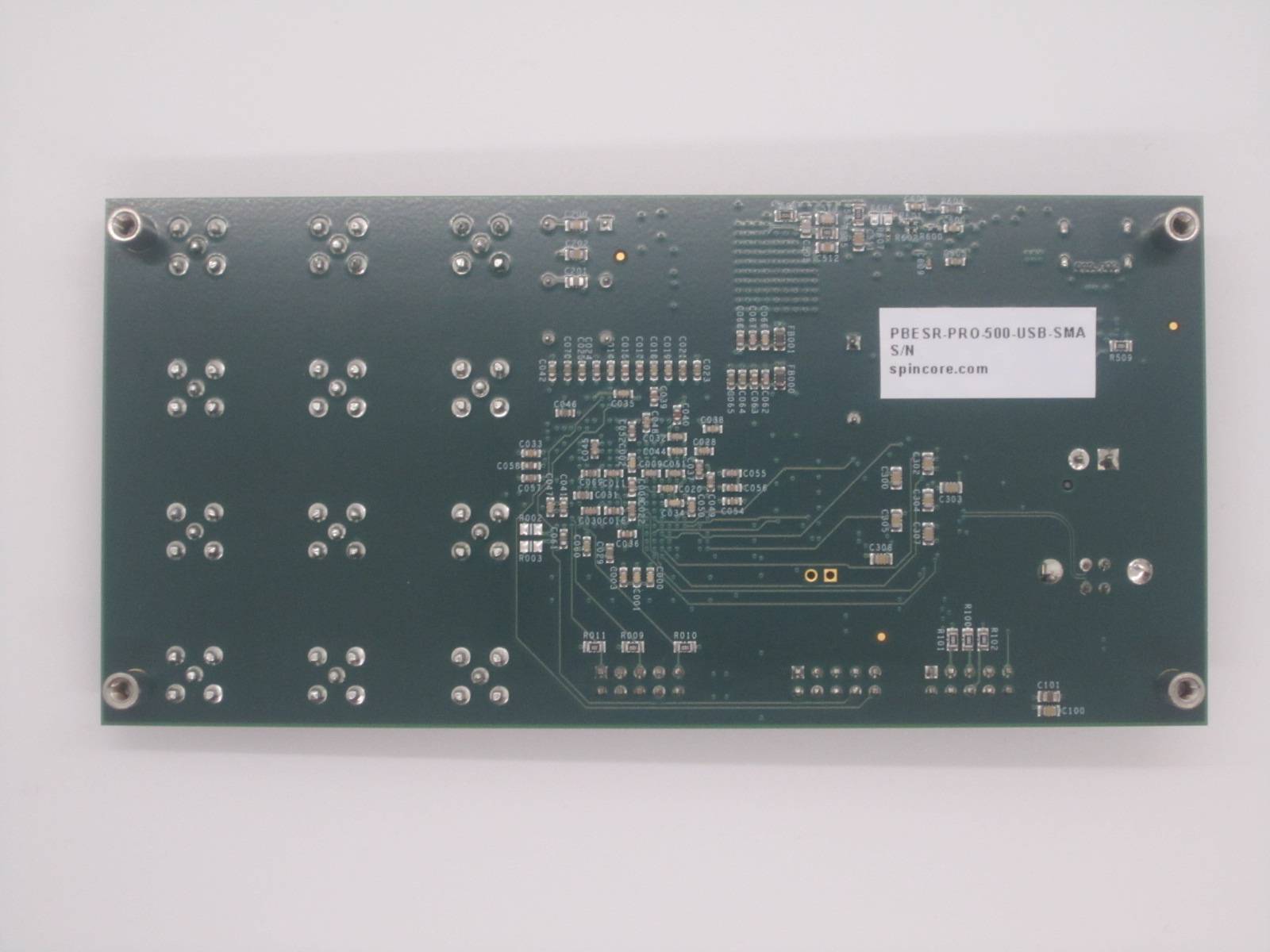

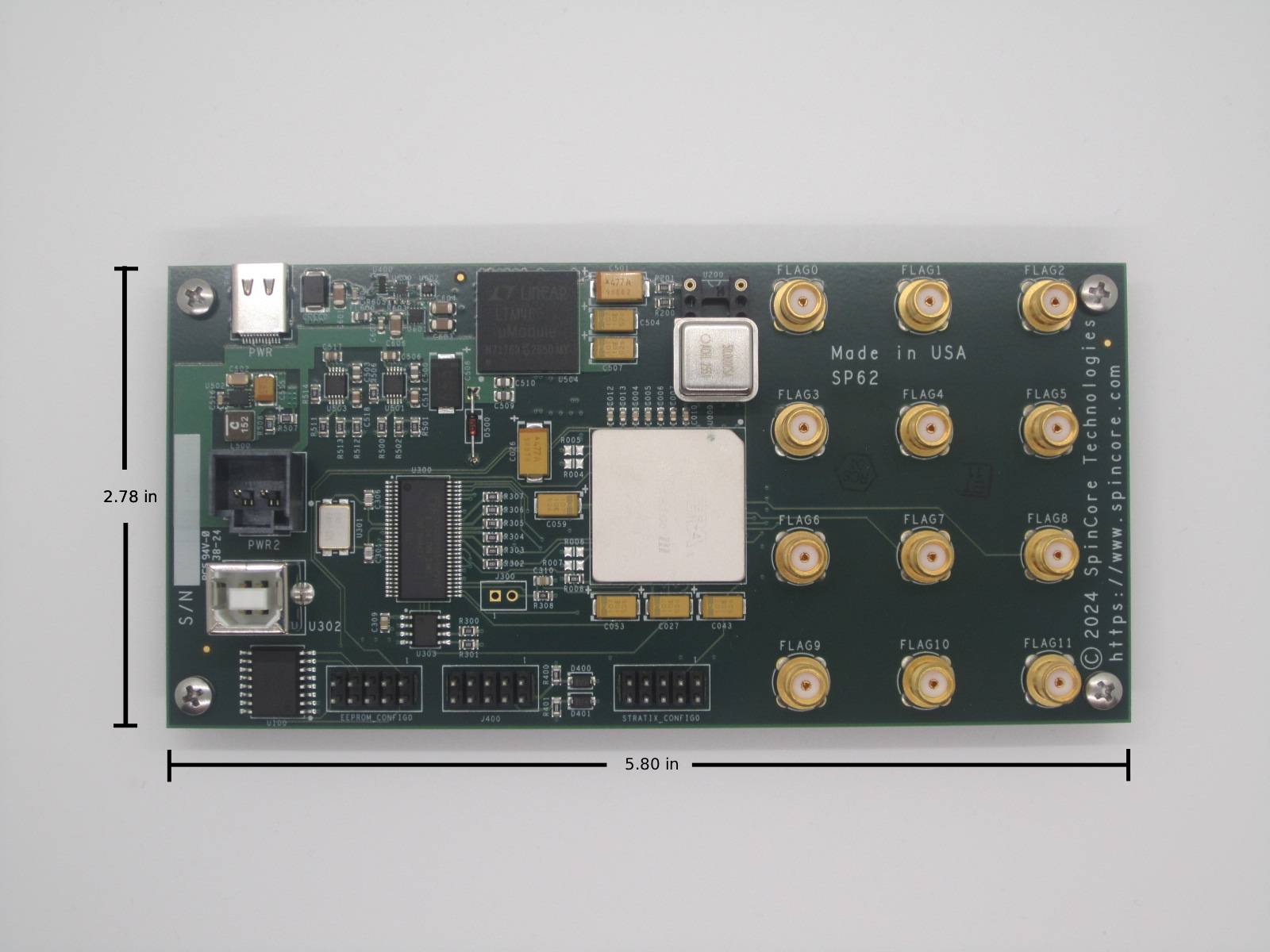

12 individually controlled output channels
12 SMA connectors
50 ohm impedance matched outputs
Programmable pulse lengths from 2.0 ns to
8.59 s per instruction (at 500 MHz)
Long Delay feature for pulse lengths beyond
8.59 s, up to 104 days in length (at 500 MHz)
